Description
B58 engine compared to the F80 M3/M4 S55
The B58 engine shares similarities with the S55 engine found in the F80 M3/M4 models, as both engines have a water-to-air charge cooler paired with heat exchangers (water radiators) in the front of the car. These radiators cool the water flowing through the charge air cooler, the water dissipate heat from the charge air before it enters the engine. The main difference lies in the B58’s liquid-to-air charge cooler design, which is integrated into the intake manifold, while the F80 S55’s cooler is a separate unit mounted on top of the engine.
Challenges of the B58 Charge Air Cooling System
A common issue with tuned B58 engines is the rapid heat soaking of the charge air cooling system, particularly during track days. High intake air temperatures will make the ECU to reduce power output or put the car into limp mode. Even spirited street driving can prompt the ECU to pull timing and decrease power output due to high intake temperature.
Our Solution

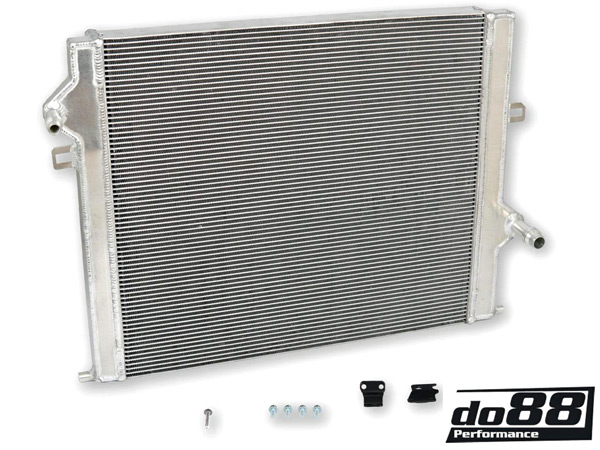

It is evident that this system needs increased cooling capacity to prevent heat soaking. Part of or solution is our do88 Performance Front mount heat exchanger. The do88 Performance Front Mount Heat Exchanger is designed to provide increased cooling capacity, preventing heat soaking. It features:
66% larger core volume than the original radiator (OE).
Dual-row core that is 48mm thick, increasing the cooling surface by 120%.
Triple-pass layout, allowing water to pass through the radiator three times instead of one, maximising core surface area utilisation.
Full aluminium construction, complete with durable TIG-welded end tanks.
Increased fluid capacity for optimal heat dissipation.
Installation
No modifications are needed to fit the larger do88 Performance Front Mount Heat Exchanger (see installation instruction). Our heat exchanger includes mounting points for the OE transmission cooler.
